Free IB Maths AI SL lesson: Volume & surface area of 3D shapes
A ready-to-teach IB Maths AI SL lesson on Volume & surface area of 3D shapes (Unit 3 · Geometry & Trigonometry): editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

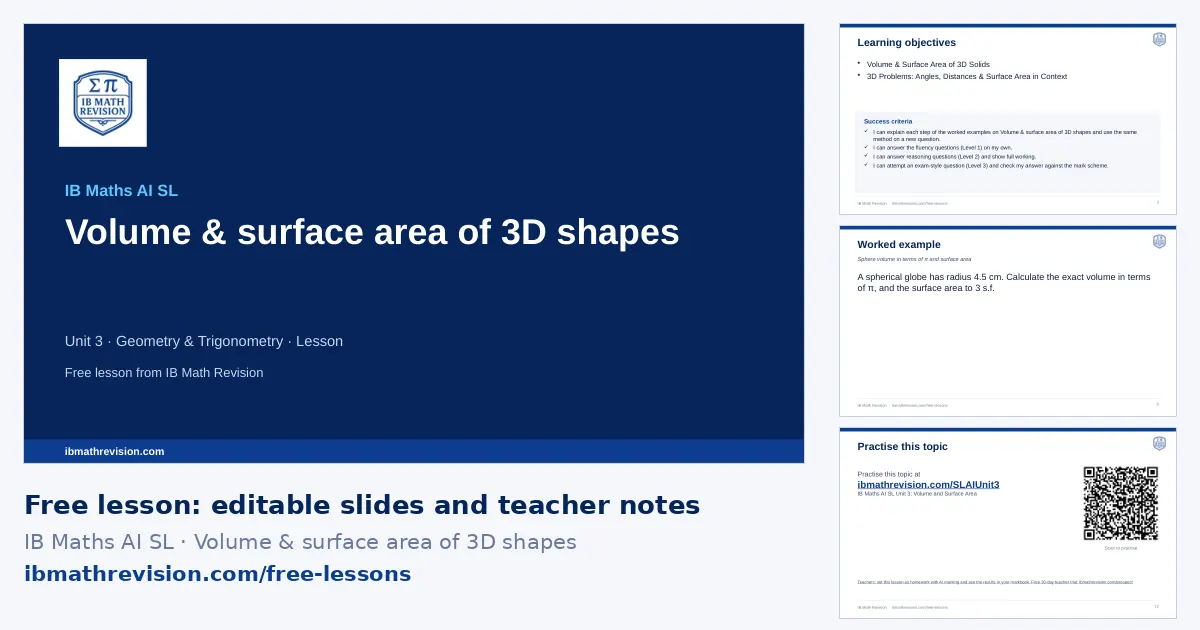

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans6 questions, 24 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- Volume & Surface Area of 3D Solids
- 3D Problems: Angles, Distances & Surface Area in Context
Key ideas on the slides
- Distance between (x₁, y₁, z₁) and (x₂, y₂, z₂): d = √((x₂ − x₁)² + (y₂ − y₁)² + (z₂ − z₁)²); midpoint ((x₁ + x₂)/2, (y₁ + y₂)/2, (z₁ + z₂)/2).
- Volumes (formula booklet): cuboid lwh, prism (cross-section area × length), cylinder π r² h, pyramid ⅓Ah, cone ⅓π r² h, sphere (4/3)π r³.
- Surface areas: cylinder 2π r² + 2π rh, cone curved surface π rl, sphere 4π r², where l is the slant height.
- For angles in 3D, find a right-angled triangle, draw it flat, and use Pythagoras and trigonometry; the angle between a line and a plane uses the line's projection onto the plane.
By the end of the lesson, students should be able to answer a question like: Find the volume of a sphere with a radius of 6.2 cm.
Skills in this topic
Volume & surface area of 3D shapes breaks down into 2 skills. In the worksheet builder, teachers can set practice on just one of them.
- Volume & surface area of one solid
- Composite solids
Key vocabulary
- slant height: The distance from the apex of a cone to the edge of its base.
- projection: The "shadow" of a line on a plane, used to measure the angle between them.
- composite solid: A solid made from two or more simpler solids.
Common mistakes this lesson tackles
- Triangles and 3D: wrong rule, wrong angle, missing units. Mark the given sides and the angle you want on a sketch before choosing the rule. Right angle: SOH CAH TOA. Otherwise sine or cosine rule. Add units to measurement answers.
- Using the vertical height where the slant height is needed (or the reverse).
- Adding the base of a hemisphere or cone when the question asks for the curved surface only.
- Rounding a length early and reusing it in the next step.
The worked example
A spherical globe has radius 4.5 cm. Calculate the exact volume in terms of π, and the surface area to 3 s.f.
- Recall: V = (4/3)π r³.
- Substitute: V = (4/3)π (4.5)³ = (4/3)π (91.125).
- Evaluate exactly: V = 121.5π cm³.
- Recall: SA = 4π r².
- Substitute: SA = 4π (4.5)² = 81π.
- Evaluate: 254.469… ⇒ 254 cm².
Tip: "Exact in terms of π" means LEAVE the π symbol in your final answer — do not evaluate it as a decimal.
Calculator tips
- Store intermediate lengths in memory; keep the GDC in degrees for angles.
Where this lesson fits
Volume & surface area of 3D shapes is in Unit 3 · Geometry & Trigonometry of the IB Maths AI SL scheme of work.
- The lesson before: Distance & midpoint in 3D (scheme-of-work lessons: 3D geometry: distance, midpoint, volume and surface area)
- The next lesson: Right-angle trig applications (scheme-of-work lessons: SOHCAHTOA & the GDC; Angles Between Two Lines and Between a Line and a Plane; Angles of Elevation & Depression)
Lesson plan
| 0–5 min | Do now: students write down what they remember about Distance & midpoint in 3D and Direct & inverse variation, cubic models |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (6 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens the IB Maths AI SL Unit 3: Volume and Surface Area practice questions.
