Free IB Maths AI SL lesson: Right-angle trig applications
A ready-to-teach IB Maths AI SL lesson on Right-angle trig applications (Unit 3 · Geometry & Trigonometry): editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

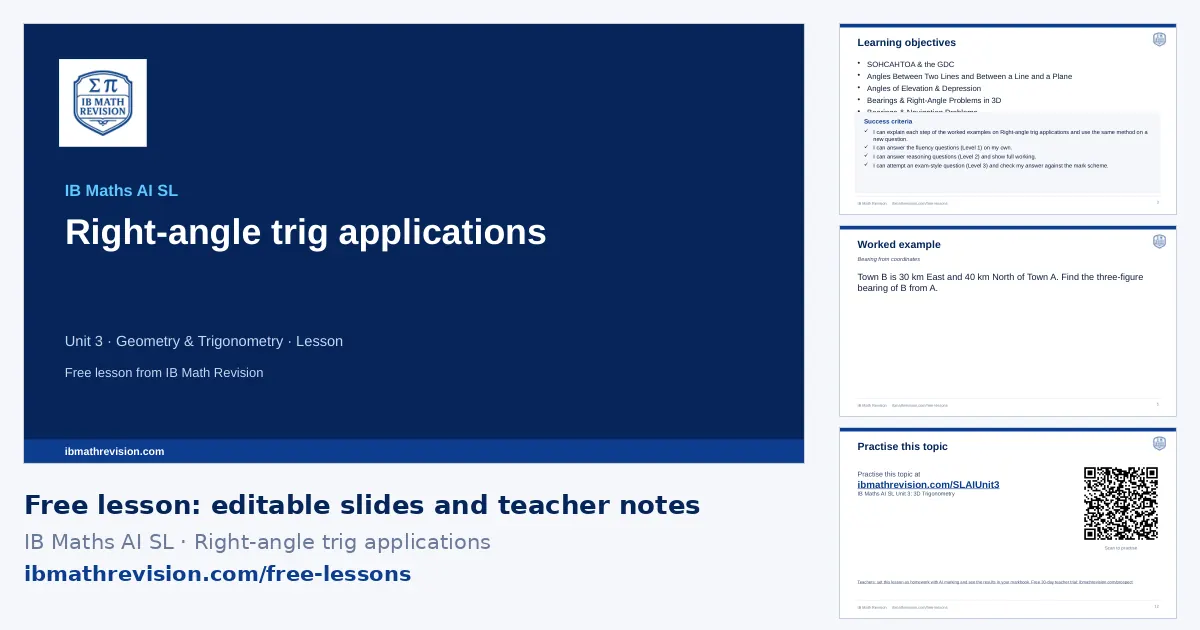

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans6 questions, 23 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- SOHCAHTOA & the GDC
- Angles Between Two Lines and Between a Line and a Plane
- Angles of Elevation & Depression
- Bearings & Right-Angle Problems in 3D
- Bearings & Navigation Problems
Key ideas on the slides
- sin θ = opp/hyp, cos θ = adj/hyp, tan θ = opp/adj.
- Label the sides from the angle you are using: hypotenuse, opposite, adjacent; then choose the ratio with the two sides you have or want.
- Finding a side: x = 12sin 35° or x = 12/(tan 35°). Finding an angle: use the inverse, θ = sin⁻¹(⅝).
- The angle of elevation is measured up from the horizontal; the angle of depression is measured down from the horizontal (and equals the elevation from the other point).
By the end of the lesson, students should be able to answer a question like: A 5m ladder leans at 60° to a wall; find its height.
Skills in this topic
Right-angle trig applications breaks down into 3 skills. In the worksheet builder, teachers can set practice on just one of them.
- Bearings & navigation
- Angles of elevation & depression
- Trigonometry in 3D
Key vocabulary
- hypotenuse: The side opposite the right angle.
- opposite: The side across from the angle being used.
- adjacent: The side next to the angle being used (not the hypotenuse).
- angle of elevation: The angle up from the horizontal to an object.
Common mistakes this lesson tackles
- Triangles and 3D: wrong rule, wrong angle, missing units. Mark the given sides and the angle you want on a sketch before choosing the rule. Right angle: SOH CAH TOA. Otherwise sine or cosine rule. Add units to measurement answers.
- Labelling opposite and adjacent from the wrong angle.
- Calculator in radians (or gradians) instead of degrees.
- Multiplying instead of dividing when the unknown side is in the denominator.
The worked example
Town B is 30 km East and 40 km North of Town A. Find the three-figure bearing of B from A.
- Ratio: tan θ = 30/40 = 0.75.
- Compute: θ = 36.87°.
- Three-figure: 037°.
Tip: Bearings are ALWAYS three digits. Leading zeros are mandatory (e.g. 037°).
Calculator tips
- Check the D (degrees) symbol is on the display before any trigonometry.
Where this lesson fits
Right-angle trig applications is in Unit 3 · Geometry & Trigonometry of the IB Maths AI SL scheme of work.
- The lesson before: Volume & surface area of 3D shapes (scheme-of-work lessons: Volume & Surface Area of 3D Solids; 3D Problems: Angles, Distances & Surface Area in Context)
- The next lesson: Sine rule (scheme-of-work lessons: The sine rule)
Lesson plan
| 0–5 min | Do now: students write down what they remember about Volume & surface area of 3D shapes and Distance & midpoint in 3D |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (6 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens the IB Maths AI SL Unit 3: 3D Trigonometry practice questions.
With a school plan
Set Right-angle trig applications as homework marked by AI, print this lesson's levelled worksheet with answers, and rebuild the lesson for your class with Create lesson. Free for 30 days as a teacher, no card.
Is it free, can I edit the slides, what do students use for homework? See questions teachers ask.
