Free IB Maths AI SL lesson: Arc length & sector area
A ready-to-teach IB Maths AI SL lesson on Arc length & sector area (Unit 3 · Geometry & Trigonometry): editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

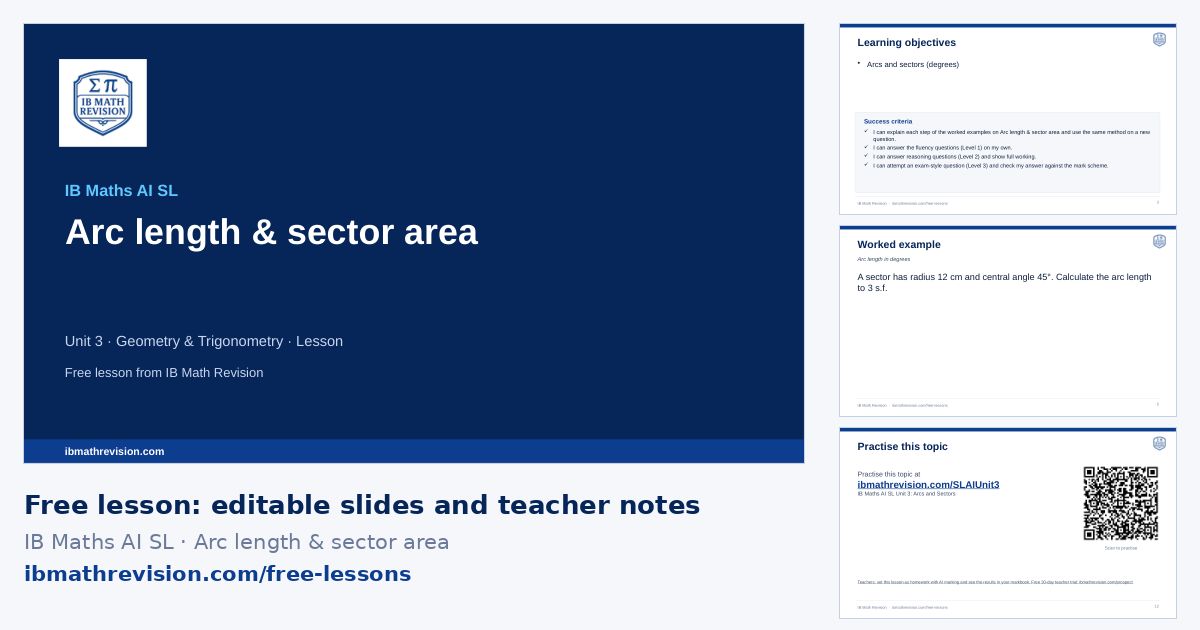

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans6 questions, 23 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- Arcs and sectors (degrees)
Key ideas on the slides
- Arc length = θ/360 × 2π r; sector area = θ/360 × π r², with θ in degrees.
- The perimeter of a sector is the arc length plus two radii.
- Segment area = sector area − triangle area = (θ/360)π r² − ½r² sin θ.
- To find the angle or radius, substitute and rearrange: an arc of 11 cm with r = 7 cm gives θ = (11 × 360)/(2π × 7) ≈ 90.0°.
By the end of the lesson, students should be able to answer a question like: Find the arc length of a sector with radius 8 cm and angle 45°.
Key vocabulary
- arc: Part of the circumference of a circle.
- sector: The region between two radii and an arc.
- segment: The region between a chord and an arc.
Common mistakes this lesson tackles
- Forgetting the two radii in the perimeter of a sector.
- Using the diameter in the formula.
- Using the major angle when the minor sector is wanted (or the other way round).
The worked example
A sector has radius 12 cm and central angle 45°. Calculate the arc length to 3 s.f.
- Formula: l = θ/360 × 2π r.
- Substitute: l = 45/360 × 24π = 3π.
- State: 3π = 9.42 cm.
Tip: Arc length uses 2π r; sector area uses π r². Different formulas.
Calculator tips
- Type the fraction θ/360 with the fraction key to keep it exact.
Where this lesson fits
Arc length & sector area is in Unit 3 · Geometry & Trigonometry of the IB Maths AI SL scheme of work.
- The lesson before: Nearest-point problems from Voronoi (scheme-of-work lessons: Piecewise Linear Models; Nearest-Neighbour Interpolation in Context)
- The next lesson: Least-squares regression line (scheme-of-work lessons: Line of Best Fit & Linear Regression; Interpreting r and the Regression Line; Bivariate Data: Interpreting Regression Parameters & the Dangers of Extrapolation)
Lesson plan
| 0–5 min | Do now: students write down what they remember about Nearest-point problems from Voronoi and Constructing a Voronoi diagram |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (6 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens the IB Maths AI SL Unit 3: Arcs and Sectors practice questions.
With a school plan
Set Arc length & sector area as homework marked by AI, print this lesson's levelled worksheet with answers, and rebuild the lesson for your class with Create lesson. Free for 30 days as a teacher, no card.
Is it free, can I edit the slides, what do students use for homework? See questions teachers ask.
