Free IB Maths AA SL lesson: Arc length & sector area
A ready-to-teach IB Maths AA SL lesson on Arc length & sector area (Unit 3 · Geometry & Trigonometry): editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

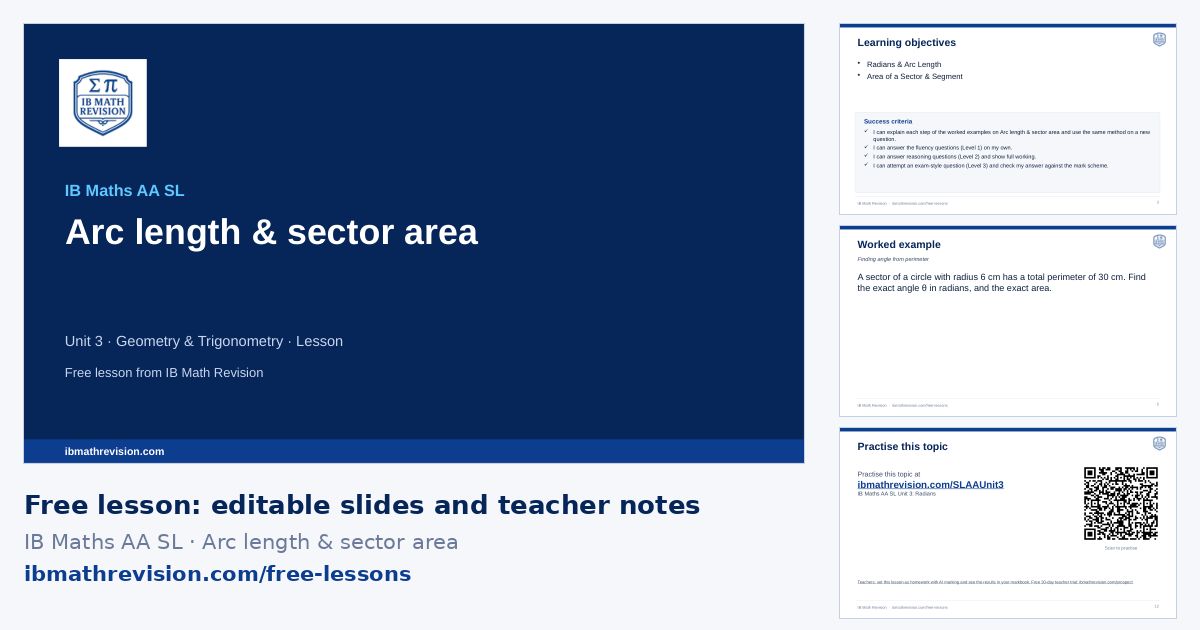

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans6 questions, 27 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- Radians & Arc Length
- Area of a Sector & Segment
Key ideas on the slides
- π radians = 180°: multiply degrees by π/180 to convert to radians, and radians by 180/π to convert back.
- With θ in radians: arc length l = rθ; sector area A = ½r²θ.
- Segment area = ½r²(θ − sin θ) (sector minus triangle, θ in radians).
- Perimeter of a sector = rθ + 2r.
By the end of the lesson, students should be able to answer a question like: Find the arc length of a sector with r=5 and theta=1.2.
Skills in this topic
Arc length & sector area breaks down into 2 skills. In the worksheet builder, teachers can set practice on just one of them.
- Arc length, sector area & perimeter: Use l = rθ and A = ½r²θ in radians, and find the perimeter of a sector.
- Segments & chords: Find a segment's area as sector minus triangle, and the length of a chord.
Key vocabulary
- radian: The angle subtended at the centre by an arc equal in length to the radius.
- arc: Part of the circumference.
- sector: The region between two radii and an arc.
- segment: The region between a chord and its arc.
Common mistakes this lesson tackles
- GDC in the wrong angle mode, and degrees in radian formulas. Check the mode at the start of every question: radians for calculus, trigonometric models and the arc and sector formulas; degrees for bearings and triangle problems given in degrees.
- Using rθ or ½r²θ with θ in degrees.
- Calculator in degree mode when the angle is in radians.
- Forgetting the two radii in a sector perimeter.
The worked example
A sector of a circle with radius 6 cm has a total perimeter of 30 cm. Find the exact angle θ in radians, and the exact area.
- Perimeter = 2r + rθ: 30 = 12 + 6θ.
- Solve: θ = 3 radians.
- Area = ½r²θ = ½(36)(3) = 54 cm².
Tip: "Perimeter of a sector" is arc length PLUS the two radii — don't forget the 2r straight edges!
Calculator tips
- Switch the calculator to radians (R on the display) for any sine or cosine of a radian angle.
Where this lesson fits
Arc length & sector area is in Unit 3 · Geometry & Trigonometry of the IB Maths AA SL scheme of work.
- The lesson before: Radian measure (scheme-of-work lessons: Radian measure, arc length and sector area)
- The next lesson: Unit circle & exact values (scheme-of-work lessons: Unit Circle: Trig Ratios of Any Angle & Exact Values; Exact Values in All Four Quadrants; Given One Trig Ratio, Find the Others)
Lesson plan
| 0–5 min | Do now: students write down what they remember about Radian measure and Area = ½ ab sin C |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (6 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens the IB Maths AA SL Unit 3: Radians practice questions.
With a school plan
Set Arc length & sector area as homework marked by AI, print this lesson's levelled worksheet with answers, and rebuild the lesson for your class with Create lesson. Free for 30 days as a teacher, no card.
Is it free, can I edit the slides, what do students use for homework? See questions teachers ask.
