Free IB Maths AI HL lesson: Minimum spanning trees (Kruskal's & Prim's algorithms)
A ready-to-teach IB Maths AI HL lesson on Minimum spanning trees (Kruskal's & Prim's algorithms) (Unit 3 · Geometry & Trigonometry): editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.
Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

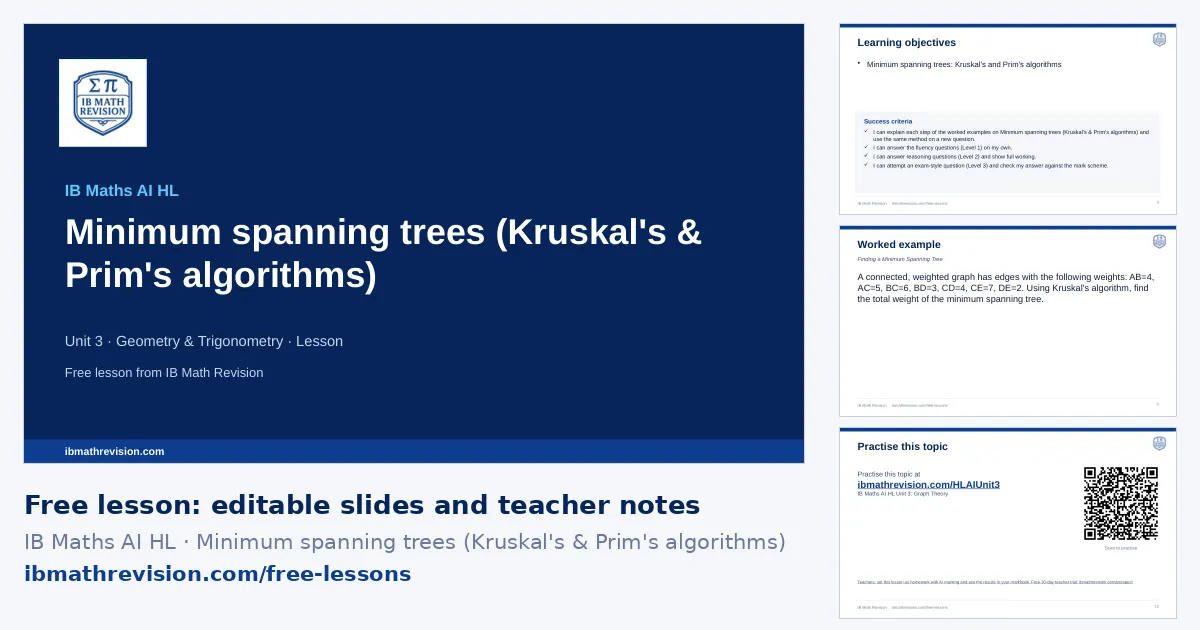

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans6 questions, 26 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- Minimum spanning trees: Kruskal's and Prim's algorithms
Key ideas on the slides
- A minimum spanning tree connects every vertex with the least total weight, using n − 1 edges and no cycles.
- Kruskal: sort edges by weight; add the smallest that does not make a cycle; stop at n − 1 edges.
- Prim: start at any vertex; repeatedly add the smallest edge joining a vertex in the tree to one outside it.
- Prim's algorithm on a table: cross out the row of each new vertex, look down the chosen columns for the smallest entry.
By the end of the lesson, students should be able to answer a question like: Use Kruskal's algorithm to find the minimum spanning tree and its weight.
Key vocabulary
- spanning tree: A tree that includes every vertex of the graph.
- minimum spanning tree: A spanning tree with the least total weight.
- weight: The number on an edge (distance, cost, time).
Common mistakes this lesson tackles
- Graph algorithms: Prim vs nearest neighbour, no method shown, bounds mixed up. Show the algorithm: list edges in the order chosen, with weights, and say when it stops. Upper bound (nearest neighbour): best = smallest found. Lower bound (deleted vertex): MST of the rest + two shortest edges to the deleted vertex; best = largest found.
- Adding an edge that forms a cycle.
- Using nearest neighbour (a tour) instead of Prim.
- Not stating the order of selection.
The worked example
A connected, weighted graph has edges with the following weights: AB=4, AC=5, BC=6, BD=3, CD=4, CE=7, DE=2. Using Kruskal's algorithm, find the total weight of the minimum spanning tree.
- List all edges in ascending order of their weights: DE (2), BD (3), AB (4), CD (4), AC (5), BC (6), CE (7).
- Select the smallest edge, DE, with weight 2.
- Add the next smallest edges, BD (3) and AB (4), as they do not form cycles.
- Reject the edge CD (4) because connecting C, D, and B would form a closed cycle.
- Add edge AC (5) to connect vertex C to the tree without forming a cycle. All 5 vertices (A, B, C, D, E) are now connected.
- Sum the selected edge weights: 2 + 3 + 4 + 5. The total weight of the minimum spanning tree is 14.
Tip: Always physically cross out edges that form a cycle on your working paper so you do not accidentally include them in your final minimum spanning tree sum.
Calculator tips
- No GDC step: keep a list of edges in order.
Lesson plan
| 0–5 min | Do now: students write down what they remember about Route inspection & the Chinese postman problem and Eigenvalues & PageRank-style centrality |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (6 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens the IB Maths AI HL Unit 3: Graph Theory practice questions.
