Free IB Maths AI HL lesson: Coupled differential equations & phase portraits
A ready-to-teach IB Maths AI HL lesson on Coupled differential equations & phase portraits (Unit 5 · Calculus): editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

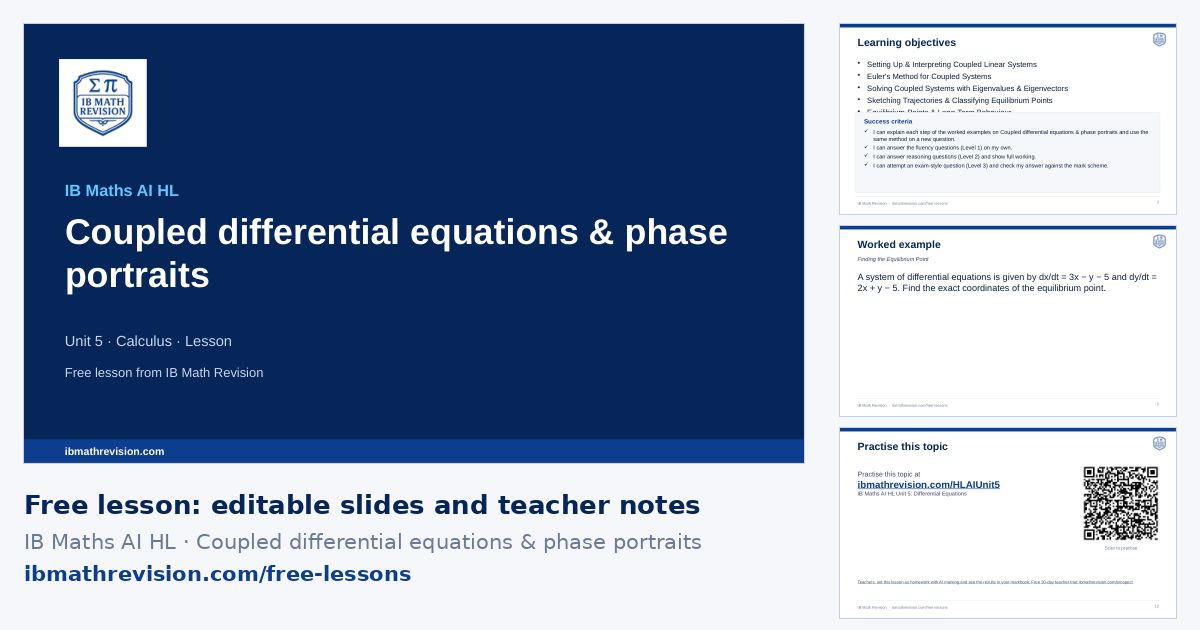

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans6 questions, 27 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- Setting Up & Interpreting Coupled Linear Systems
- Euler's Method for Coupled Systems
- Solving Coupled Systems with Eigenvalues & Eigenvectors
- Sketching Trajectories & Classifying Equilibrium Points
- Equilibrium Points & Long-Term Behaviour
- Real, Complex & Imaginary Eigenvalues
- Differential Equations in Context: Population, Predator–Prey & Combat Models
Key ideas on the slides
- A coupled linear system ẋ = ax + by, ẏ = cx + dy is ẋ = Mx.
- With eigenvalues λ₁, λ₂ and eigenvectors v₁, v₂ of M: x = Ae^(λ₁ t)v₁ + Be^(λ₂ t)v₂.
- Equilibrium at the origin: both eigenvalues negative, stable; both positive, unstable; opposite signs, saddle; complex, spiral (stable if the real part is negative) or a centre if purely imaginary.
- A second-order DE ẍ + bẋ + cx = 0 becomes a coupled system with y = ẋ.
By the end of the lesson, students should be able to answer a question like: Write a second-order differential equation as a coupled system and classify its equilibrium point.
Skills in this topic
Coupled differential equations & phase portraits breaks down into 2 skills. In the worksheet builder, teachers can set practice on just one of them.
- Eigenvalues & the type of equilibrium
- Phase portraits & trajectories
Key vocabulary
- equilibrium point: A point where all the rates are zero.
- phase portrait: A diagram of trajectories in the x–y plane.
- saddle point: An equilibrium that attracts along one direction and repels along another.
Common mistakes this lesson tackles
- Coupled systems and phase portraits: equilibria, eigenvectors, trajectories. Equilibrium: dx/dt = 0 and dy/dt = 0. Write the system as a matrix, find eigenvalues and eigenvectors (in the form (1, k)), and use their signs: both negative → stable node, opposite signs → saddle, complex → spiral.
- Classifying with eigenvector directions instead of the eigenvalues' signs.
- Drawing trajectories that cross.
- Forgetting the direction arrows on trajectories.
The worked example
A system of differential equations is given by dx/dt = 3x − y − 5 and dy/dt = 2x + y − 5. Find the exact coordinates of the equilibrium point.
- State the condition for an equilibrium point: both dx/dt = 0 and dy/dt = 0.
- Set up the system of linear equations: 3x − y = 5 and 2x + y = 5.
- Add the two equations to eliminate y: 5x = 10 ⇒ x = 2.
- Substitute x = 2 back into the second equation: 2(2) + y = 5 ⇒ y = 1.
- The exact coordinates of the equilibrium point are (2, 1).
Tip: Equilibrium points (or critical points) on a phase portrait occur where both the horizontal and vertical rates of change are simultaneously zero, meaning a particle at this point remains completely stationary.
Calculator tips
- Use the GDC for eigenvalues and Euler's method (spreadsheet) for trajectories.
Where this lesson fits
Coupled differential equations & phase portraits is in Unit 5 · Calculus of the IB Maths AI HL scheme of work.
- The lesson before: Separable first-order DEs (scheme-of-work lessons: Setting Up dy/dx from Rates of Change; Solving by Separation of Variables)
- The next lesson: Euler's method for numerical solutions to DEs (scheme-of-work lessons: Euler's method)
Lesson plan
| 0–5 min | Do now: students write down what they remember about Reading trajectories on a slope field and Sketching slope fields |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (6 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens the IB Maths AI HL Unit 5: Differential Equations practice questions.
