Free IB Maths AA SL lesson: Right-angle trig (SOH CAH TOA)
A ready-to-teach IB Maths AA SL lesson on Right-angle trig (SOH CAH TOA) (Unit 3 · Geometry & Trigonometry): editable slides and teacher notes, free; a printable worksheet in 2 levels with answers for school plans. About 55 minutes.
This lesson is right-angled trigonometry in two and three dimensions: choosing sine, cosine or tangent from the two sides involved, finding a missing side or angle, and finding lengths inside cuboids and pyramids with Pythagoras first. The angle between a line and a plane has a lesson of its own.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

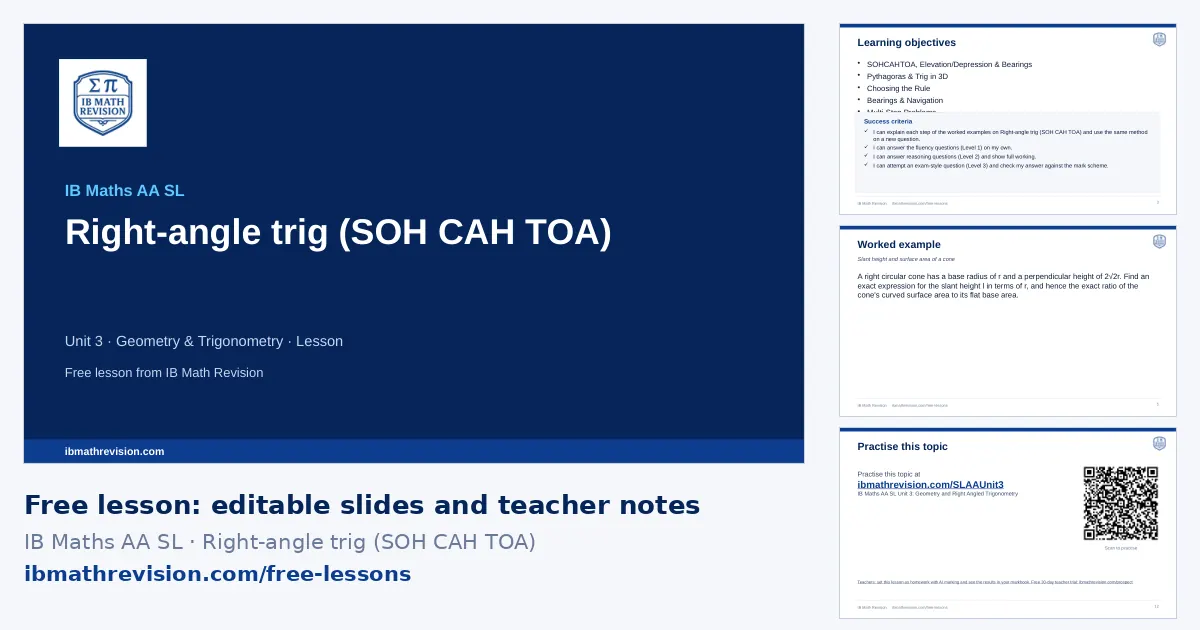

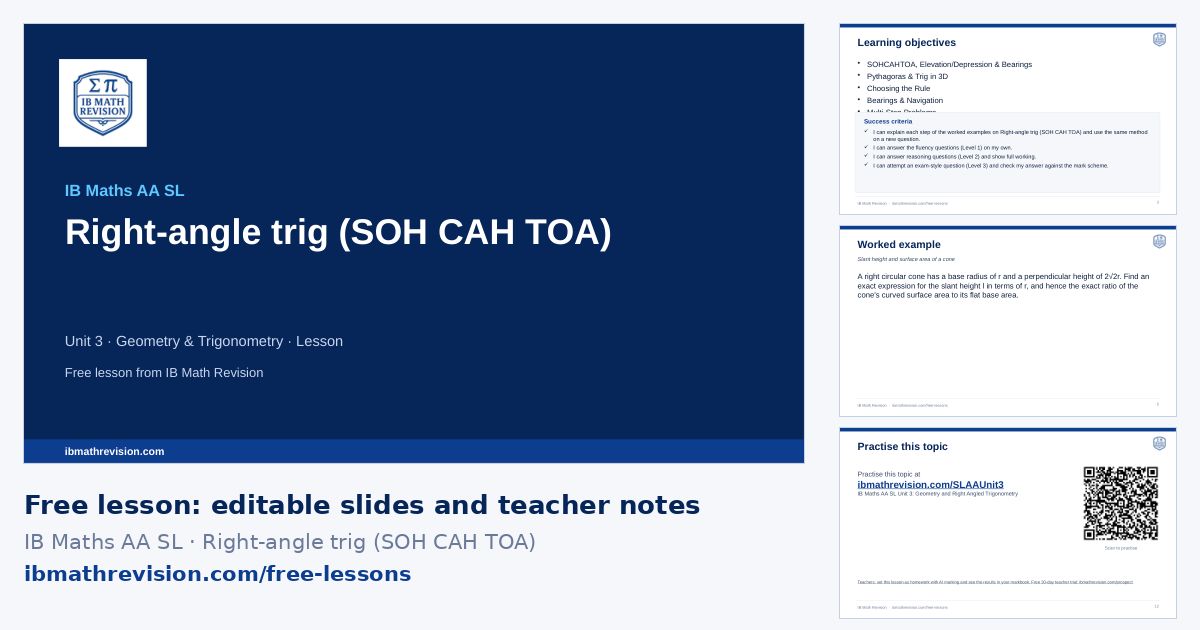

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans3 questions, 18 marks: Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- SOHCAHTOA, Elevation/Depression & Bearings
- Pythagoras & Trig in 3D
- Choosing the Rule
- Bearings & Navigation
- Multi-Step Problems
- The Ambiguous Case in Context
Skills in this topic
Right-angle trig (SOH CAH TOA) breaks down into 2 skills. In the worksheet builder, teachers can set practice on just one of them.
- Right-angled triangles in 2D: Use sine, cosine and tangent to find a side or an angle in a right-angled triangle.
- Lengths & angles in 3D solids: Find diagonals, edges and the angles between lines in cuboids, pyramids and cones.
Worked example: Right-angle trig (SOH CAH TOA)
A kite string 40 m long is pulled straight and makes an angle of 52° with the level ground. How high is the kite?
- The string is the hypotenuse and the height is opposite the 52° angle.
- Opposite and hypotenuse: use sine, height = 40 sin 52°.
- 40 × 0.7880 = 31.52.
Answer: 31.5 m
Common mistakes in right-angle trig (SOH CAH TOA)
- Picking the ratio before labelling the sides: mark opposite, adjacent and hypotenuse from the angle first.
- Leaving the calculator in radians when the angle is in degrees.
- Rounding a length in the middle of a 3D problem and losing accuracy.
The worked example
In triangle PQR the angle at Q is a right angle, PR = 15 cm and QR = 9 cm. Find the length PQ and the size of angle QPR.
- Label from angle QPR: PR is the hypotenuse and QR is opposite P.
- Pythagoras: PQ = √(15² − 9²) = √144 = 12 cm.
- Choose the ratio: opposite and hypotenuse, so sin QP̂R = 9/15 = 0.6.
- Inverse sine: QP̂R = sin⁻¹(0.6) = 36.9°.
Tip: Label the sides from the angle you want before choosing sine, cosine or tangent, and check the calculator is in degrees.
Where this lesson fits
Right-angle trig (SOH CAH TOA) is in Unit 3 · Geometry & Trigonometry of the IB Maths AA SL scheme of work.
- The lesson before: Distance & midpoint in 3D (scheme-of-work lessons: 3D geometry: distance, midpoint, volume and surface area)
- The next lesson: Angles of elevation & depression (scheme-of-work lessons: Right-angled trigonometry (SOH CAH TOA))
Lesson plan
| 0–5 min | Do now: students write down what they remember about Distance & midpoint in 3D and Inverse functions & their graphs |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (3 questions in 2 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens the IB Maths AA SL Unit 3: Geometry and Right Angled Trigonometry practice questions.
