Free IB Maths AI SL lesson: Constructing a Voronoi diagram
A ready-to-teach IB Maths AI SL lesson on Constructing a Voronoi diagram (Unit 3 · Geometry & Trigonometry): editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.
This lesson builds Voronoi diagrams by hand: the perpendicular bisector of two sites first, then the cells for three or four sites and the vertex where three cells meet. AI SL papers test the algebra behind the diagram, usually the equation of a bisector in the form y = mx + c.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
What's inside

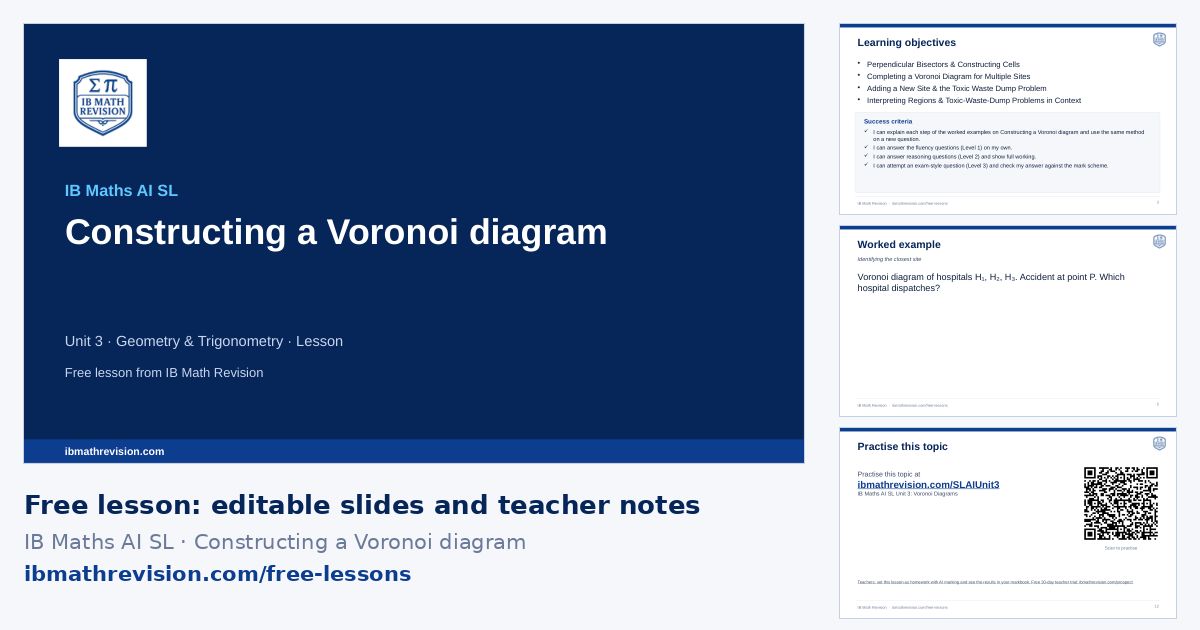

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans4 questions, 28 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- Perpendicular Bisectors & Constructing Cells
- Completing a Voronoi Diagram for Multiple Sites
- Adding a New Site & the Toxic Waste Dump Problem
- Interpreting Regions & Toxic-Waste-Dump Problems in Context
Worked example: Constructing a Voronoi diagram
Sites are at A(0, 0), B(6, 0) and C(0, 4). (a) Find the perpendicular bisector of A and B. (b) Find the perpendicular bisector of A and C. (c) Find the Voronoi vertex, and check it with the bisector of B and C.
- (a) A and B are on the x-axis, so their bisector is the vertical line through the midpoint (3, 0): x = 3.
- (b) A and C are on the y-axis, so their bisector is the horizontal line through (0, 2): y = 2.
- (c) The vertex is where the bisectors cross: (3, 2).
- Check: BC has midpoint (3, 2) and gradient −2/3, so its bisector has gradient 3/2: y = 1.5x − 2.5, which passes through (3, 2). The vertex is √13 ≈ 3.61 units from each site.
Answer: (a) x = 3 (b) y = 2 (c) (3, 2)
Common mistakes in constructing a Voronoi diagram
- Using the gradient of the line joining the sites instead of its negative reciprocal.
- Drawing a bisector through one of the sites instead of through the midpoint.
- Drawing every bisector as a full line: each edge stops at a vertex.
The worked example
Sites A(2, 2) and B(6, 10). Find the boundary separating them in y=mx+c form.
- Midpoint: M = (4, 6).
- Gradient AB: 2; perpendicular = −0.5.
- Line: y − 6 = −0.5(x − 4).
- State: y = −0.5x + 8.
Tip: Voronoi boundary = perpendicular bisector.
Where this lesson fits
Constructing a Voronoi diagram is in Unit 3 · Geometry & Trigonometry of the IB Maths AI SL scheme of work.
- The lesson before: Equation of a perpendicular bisector (scheme-of-work lessons: Parallel and perpendicular lines)
- The next lesson: Nearest-point problems from Voronoi (scheme-of-work lessons: Piecewise Linear Models; Nearest-Neighbour Interpolation in Context)
Lesson plan
| 0–5 min | Do now: students write down what they remember about Equation of a perpendicular bisector and Area = ½ ab sin C |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (4 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
