Free IB Maths AA SL and AI SL lesson: Parallel & perpendicular lines
A ready-to-teach IB Maths AA SL and AI SL lesson on Parallel & perpendicular lines: editable slides and teacher notes, free; a printable worksheet in 3 levels with answers for school plans. About 55 minutes.

Free with a teacher account. Sign in with Google, Microsoft or email and download the slides and teacher notes.
One lesson for AA SL and AI SL
Parallel & perpendicular lines is taught in IB Maths AA SL and IB Maths AI SL, with the same key ideas. Choose your course above the download button: each version's slides use that course's own worked example, questions and practice link.
- AA SL (Unit 2 · Functions)
- AI SL (Unit 2 · Functions)
What's inside

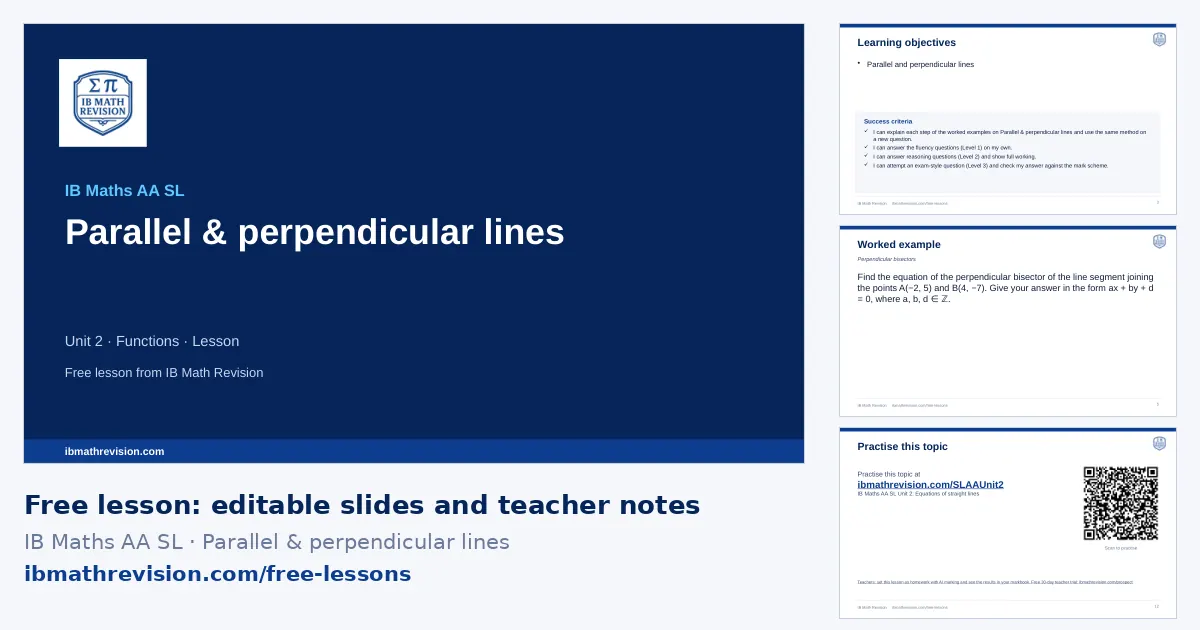

- Slides (PowerPoint, editable) · freeabout 12 slides: do now, objectives, key ideas, a worked example step by step, “your turn”, practice QR code, exit ticket
- Teacher notes (PDF) · freelesson plan with timings, common mistakes, homework links
- Worksheet (PDF) · school plans6 questions, 36 marks: Fluency, Reasoning, Exam-style. Included with school plans and the teacher trial.
- Answers (PDF) · school plansthe answer to every worksheet question, from its mark scheme. Included with school plans and the teacher trial.
Learning objectives
- Parallel and perpendicular lines
Key ideas on the slides
- Parallel lines have equal gradients.
- Perpendicular lines have gradients that multiply to −1: m₁ m₂ = −1, so m₂ = −1/m₁ (the negative reciprocal).
- A perpendicular bisector of AB passes through the midpoint of AB with gradient the negative reciprocal of the gradient of AB.
- To find a line through a point: use the new gradient and substitute the point into y = mx + c or y − y₁ = m(x − x₁).
By the end of the lesson, students should be able to answer a question like: Find the line perpendicular to y = 2x - 3 passing through (1,4).
Key vocabulary
- parallel: Lines with the same gradient that never meet.
- perpendicular: At right angles; the gradients multiply to −1.
- negative reciprocal: −1/m: flip the gradient and change its sign.
- perpendicular bisector: The line that cuts a segment in half at right angles.
Common mistakes this lesson tackles
- Using 1/m or −m instead of −1/m for a perpendicular gradient.
- Using the gradient of the original line through the midpoint for a perpendicular bisector.
- Reading the gradient of 2y = 4x + 1 as 4 instead of 2.
The worked example
Find the equation of the perpendicular bisector of the line segment joining the points A(−2, 5) and B(4, −7). Give your answer in the form ax + by + d = 0, where a, b, d ∈ ℤ.
- Calculate the midpoint M: M = ((−2 + 4)/2, (5 − 7)/2) = (1, −1).
- Calculate the gradient of AB: m_AB = (−7 − 5)/(4 − (−2)) = −12/6 = −2.
- Determine the perpendicular gradient: m_(⊥) = ½.
- Substitute M and m_(⊥) into point-slope form: y + 1 = ½(x − 1).
- Rearrange into integer form: 2y + 2 = x − 1 ⇒ x − 2y − 3 = 0.
Tip: Students frequently forget to use the midpoint for the perpendicular bisector, mistakenly substituting one of the original endpoints (A or B) into the line equation instead.
Calculator tips
- Plot both lines on the graphing app and check they meet at right angles (use equal axis scales).
Where this lesson fits
Parallel & perpendicular lines is in Unit 2 · Functions of the IB Maths AA SL scheme of work.
- The lesson before: Gradient & intercepts of a line (scheme-of-work lessons: Straight lines: gradient and equation)
- The next lesson: Quadratic graphs & vertex (scheme-of-work lessons: Quadratic functions and their graphs)
Lesson plan
| 0–5 min | Do now: students write down what they remember about Gradient & intercepts of a line and Key features of graphs & intersections with technology |
| 5–8 min | Share the learning objective and success criteria |
| 8–20 min | Teach: the worked example, step by step; students copy the method |
| 20–25 min | Your turn: 1 mini-whiteboard question; check every board before moving on |
| 25–42 min | Practise: the worksheet (6 questions in 3 levels, with school plans and the teacher trial) or the topic's practice questions online; move up a level after two right in a row |
| 42–47 min | Plenary: 1-question exit ticket; collect it to plan the next lesson |
For students: practise this topic
The worksheet's QR code opens your course's practice questions:
- IB Maths AA SL Unit 2: Equations of straight lines practice questions
- IB Maths AI SL Unit 2: Coordinate Geometry practice questions
